284716-3 | AMP

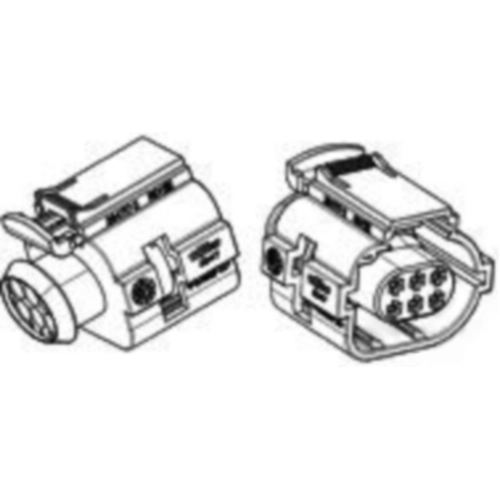

Socket, unequipped, 6 pole, straight, 2 rows, brown, 284716-3
Order No.: 36P2805
EAN: 4099889898552
MPN:
284716-3
Unit Price (€ / pc.)
2.856 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Socket housing, 284716-3, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 6, Number of rows: 2, Operating voltage: 24 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PA GF, Primary product color: brown, Mating tab width: 1.5 mm, Strain relief: no, Centerline (pitch): 4 mm, Row-to-row spacing: 5 mm, Operating temperature (max): 70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C, Operating temperature range: -40-140 °C, Circuit application: signal, Packaging method: bag, Serviceable: yes, Connector position assurance capable: yes
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | brown | |
| Contact type | socket | |
| Rated voltage | 24 V | |
| Rated current | 10 A | |
| Pin number | 6 pole | |
| Grid | 4 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
