1808.7031 | Mentor
LED signal light, yellow, 20 mcd, pitch 2.54 mm, LED number: 1
Unit Price (€ / pc.)
2.4276 € *
Available: 141 pcs.
Leadtime: 2 Weeks **
Total Price:
24.28 € *
Price list
Quantity
Price per unit*
10 pcs.
2.4276 €
50 pcs.
2.1420 €
250 pcs.
1.8564 €
1000 pcs.
1.6065 €
2500 pcs.
1.4637 €
*incl. VAT plus shipping costs
**Subject to prior sale

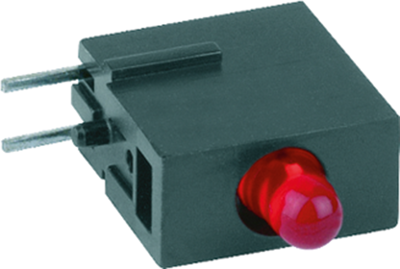

LED signal lamps, type Mentor 1808.
Diode diameter: 3.0 mm. Grid: 2.54 mm, suitable for in-line installation, with guides and grooves on the side, no series resistor. Housing material: PC, black. Connections: tinned. Operating temperatures: –40 to +85 °C.
Technical attributes (type, LED color, forward Voltage (typical) at 20 mA, forward current (max.), wavelength, luminous intensity (min./max.) at 10 mA): 1808.7031, yellow, 2.1 V, 30 mA, 590 nm, 8.0/17 mcd
Technical specifications
| Connection | PCB connection | |
| Number of LEDs | 1 | |
| Diode Diameter | 3 mm | |
| Farbe der Beleuchtung | yellow | |
| Luminous intensity | 0.02 cd | |
| Assembly | through hole | |
| Rated current | 20 mA | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
