OBT350--R100-2EP-IO-V31 | PEPPERL+FUCHS

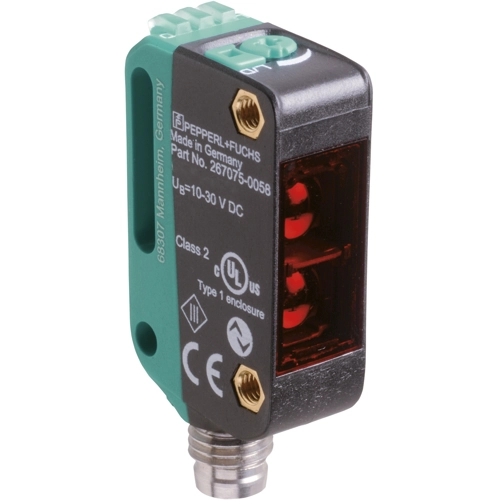

Diffuse mode sensor, 5 mm, NPN, 10-30 VDC, M8-connector, IP69K, OBT350--R100-2EP-IO-V31
Triangulation sensor (BGS) type Pepperl+Fuchs
Type: OBT350-R100-2EP-IO-V31
Detection range 5 ... 350 mm
Detection range min. 5 ... 25 mm
Detection range max. 5 ... 350 mm
Adjustment range 25 ... 350 mm
Reference target standard white, 100 mm x 100 mm
Light source LED
Light type modulated visible red light
LED risk group labelling exempt group
Black/White difference (6 %/90 %) < 15 % at 350 mm
Diameter of the light spot approx. 20 mm at a distance of 350 mm
Angle of divergence approx. 3 °
Ambient light limit EN 60947-5-2 : 40000 Lux
Functional safety related parameters
MTTFd 600 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Connection | M8-connector | |
Activation time | 1 ms | |
Version | diffuse mode sensor | |
Output | NPN | |
Detecting distance | 5 mm | |
Switching logic | light ON/dark ON | |
Degree of protection (IP) | IP69K | |
Voltage | 10-30 VDC | |
Power supply | 25 mA |
Country of origin | SG |
Customs tariff number | 85365019 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
