1430572 | Phoenix Contact
Sensor actuator cable, M12-cable plug, angled to open end, 12 pole, 1.5 m, PUR, black, 1.5 A, 1430572
Order No.: 61P4916
EAN: 4046356456395
MPN:
1430572
SAC-12P-MR/ 1,5-PUR SCO
Unit Price (€ / pc.)
60.9518 € *
Available: 0 pcs.
Leadtime: On Request **
Sensor/actuator cable, 1430572, Phoenix Contact

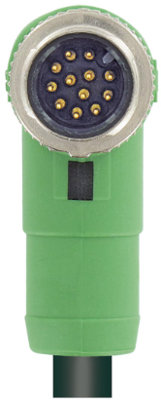

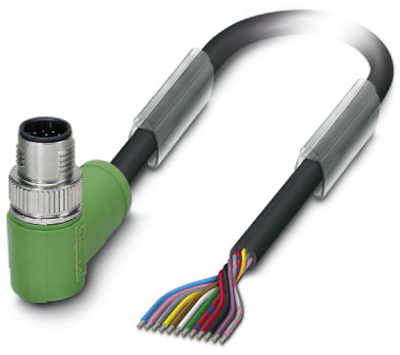

Sensor/actuator cable, 12-position, PUR halogen-free, Black RAL 9005, Plug angled M12 SPEEDCON, Coding: A, on free cable end, Cable length: 1.5 m
Features
- Easy and safe: 100% electrically tested plug-in components
- Save time, thanks to installation with SPEEDCON fast locking system
- Our standard: robust halogen-free PUR cable
- Save space – with high-pos. Connectors
Technical specifications
| Connection (1) | M12-cable plug, angled | |
| Connection (2) | open end | |
| Colour | black | |
| Cable length | 1.5 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 30 V | |
| Rated current | 1.5 A | |
| Pin number | 12 pole | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
