48246 | Schneider Electric

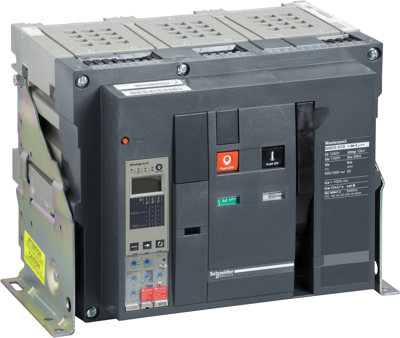

Circuit breaker, Push actuator, 3 pole, 1000 A, 1000 V, (W x H x D) 441 x 439 x 395 mm, Drawout, 48246
Unit Price (€ / pc.)
4,373.0001 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4,373.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4,373.0001 €
Circuit breaker, 48246, Schneider Electric
Masterpact NW10H2- 3 P, 1000A, max. breaking capacity 100kA . Masterpact NW10H2- 3 P, 1000A, max. breaking capacity 100kA. Product series: Masterpact NW - Product or component type: Base frame - Short designation of the device: Masterpact NW10 - Circuit breaker designation: Masterpact NW10 - Ne
Technical specifications
| Actuator | Push actuator | |
| Width | 441 mm | |
| Permanent current | 1000 A | |
| Height | 439 mm | |
| Isolation voltage | 1000 V | |
| Assembly | Drawout | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP30 | |
| Depth | 395 mm |
Download
Logistics
| Country of origin | NL |
| Customs tariff number | 85362090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, lead monoxide (lead oxide) |
