1059500000 | Weidmüller

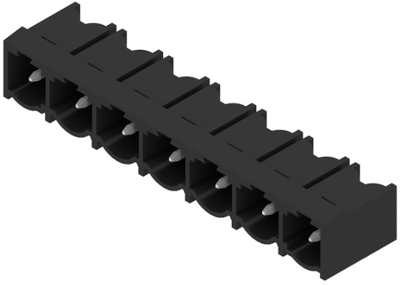

Pin header, 7 pole, pitch 7.62 mm, angled, black, 1059500000
Order No.: 50P4222
EAN: 4032248807321
MPN:
1059500000
SL 7.62HP/07/90G 3.2SN BK BX
Unit Price (€ / pc.)
2.8560 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
2.86 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8560 €
10 pcs.
2.6656 €
50 pcs.
2.4038 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 1059500000, Weidmüller
Printed Circuit Board Connector, closed side, THT solder termination, 7.62 mm, no. of poles: 7, 90°, 3.2 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 630 V | |
| Rated current | 29 A | |
| Orientation | angled | |
| Pin number | 7 pole | |
| Grid | 7.62 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
