MKP4J024702F00KI00 | Wima
MKP-Folienkondensator, 47 nF, ±10 %, 630 V (DC), PP, 7.5 mm, MKP4J024702F00KI00
Bestellnr.: 48D4731
EAN: 4099879855817
HTN:
MKP4J024702F00KI00
MKP 4 0.047 µF 630 VDC
Herstellerserien: MKP 4
Einzelpreis (€ / Stk.)
0,2749 € *
Lagerbestand: 0 Stk.
Lieferzeit ab Hersteller: 23 Wochen **
Gesamtpreis:
274,89 € *
*inkl. MwSt. zzgl. Versandkosten
**Zwischenverkauf vorbehalten
1000 Stk.
0,2749 €
Folienkondensator, MKP4J024702F00KI00, WIMA
The MKP4J024702F00KI00 is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- Hohes Volumen/Kapazitätsverhältnis
- Selbstheilung
- Sehr niedriger Verlustfaktor
- Negative Kapazitätsänderung in Abhängigkeit von der Temperatur
- Sehr geringe dielektrische Absorption
Anwendungen
- Probenahme und Halten
- Zeitmessung
- Oszillierende Kreisläufe
- Hochfrequenzkopplung und -entkopplung
Technische Daten

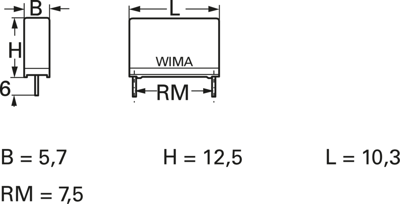

Anzahl der Pins | 2 | |
Bauform | radial | |
Breite | 5.7 mm | |
Dielektrikum | PP | |
Höhe | 12.5 mm | |
Kapazität | 47 nF | |
Länge | 10.3 mm | |
max. Temperatur | 105 °C | |
min. Temperatur | -55 °C | |
Nennspannung (AC) | 280 V | |
Nennspannung (DC) | 630 V | |
Rastermaß | 7.5 mm | |
Toleranz | ±10 % |
Download
Logistik
Ursprungsland | DE |
Zolltarifnummer | 85322500 |
Originalverpackung | Rolle mit 1.000 Stück |
Compliance
RoHS konform | Ja |
Stand der RoHS-Richtlinie | 31.03.15 |
SVHC frei | Ja |
