MKP4O121503F00KSSD | Wima
MKP-Folienkondensator, 15 nF, ±10 %, 1 kV (DC), PP, 10 mm, MKP4O121503F00KSSD
Bestellnr.: 48D5116
EAN: 4099879855848
HTN:
MKP4O121503F00KSSD
MKP 4 0.015 µF 1000 VDC
Herstellerserien: MKP 4
Einzelpreis (€ / Stk.)
0,2130 € *
Lagerbestand: 0 Stk.
Lieferzeit ab Hersteller: 23 Wochen **
Gesamtpreis:
21,30 € *
*inkl. MwSt. zzgl. Versandkosten
**Zwischenverkauf vorbehalten
100 Stk.
0,2130 €
Folienkondensator, MKP4O121503F00KSSD, WIMA
The MKP4O121503F00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- Hohes Volumen/Kapazitätsverhältnis
- Selbstheilung
- Sehr niedriger Verlustfaktor
- Negative Kapazitätsänderung in Abhängigkeit von der Temperatur
- Sehr geringe dielektrische Absorption
Anwendungen
- Probenahme und Halten
- Zeitmessung
- Oszillierende Kreisläufe
- Hochfrequenzkopplung und -entkopplung
Technische Daten

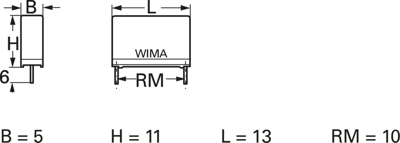

Anzahl der Pins | 2 | |
Bauform | radial | |
Breite | 5 mm | |
Dielektrikum | PP | |
Höhe | 11 mm | |
Kapazität | 15 nF | |
Länge | 13 mm | |
max. Temperatur | 105 °C | |
min. Temperatur | -55 °C | |
Nennspannung (AC) | 400 V | |
Nennspannung (DC) | 1 kV | |
Rastermaß | 10 mm | |
Toleranz | ±10 % |
Download
Logistik
Ursprungsland | DE |
Zolltarifnummer | 85322500 |
Compliance
RoHS konform | Ja |
Stand der RoHS-Richtlinie | 31.03.15 |
SVHC frei | Ja |
