BATTERIEHALTER 107 | Battery Holders
Battery holder for button cell Ø 20/24 mm, 1 cell, PCB mounting, BATTERIEHALTER 107
Order No.: 28A1025
EAN: 4099889625516
MPN:
BATTERIEHALTER 107
Unit Price (€ / pc.)
2.4395 € *
Available: 87 pcs.
Leadtime: On Request **
Total Price:
2.44 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4395 €
10 pcs.
2.2015 €
50 pcs.
1.9635 €
100 pcs.
1.7731 €
250 pcs.
1.5946 €
*incl. VAT plus shipping costs
**Subject to prior sale

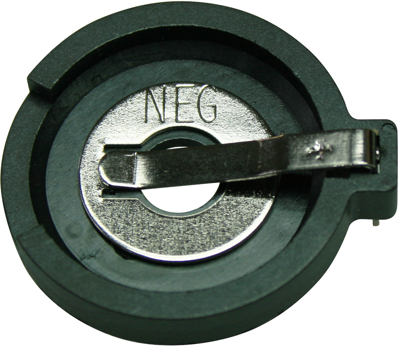

Battery holders for button cells, type KE 10.

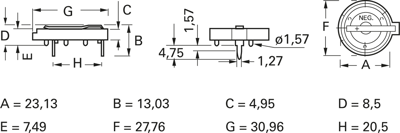

Depending on the version, suitable for one or two button cells of approx. 20 or 24 mm diameter and 1.6 to 5.0 mm height; Insulator: PBT to UL 94 V-0, black. Contacts: spring steel, nickel-plated on tin substrate. Dimensions: W 13.03 (with 2 cells 16), C 4.95 (with 2 cells 7.92), C 8.5 (with 2 cells 11.48), C 7.49 (with 2 cells 10.46), F 27.76, G 30.96, H 20.5 mm.
Technical attributes (type, number of cells, dimensions A, lithium cell type (e.g. Varta or Duracell)): 0107, 1 cell, A 23.13 mm, CR 2320/2330
Technical specifications
| Anwendung | Knopfzelle Ø 20/24 mm | |
| Anzahl der Zellen | 1 | |
| Montage | Leiterplattenmontage |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 6/8/11 |
| SVHC frei | Yes |
