BATTERIEHALTER 502 | Battery Holders
Battery holder for button cell Ø 12/16 mm, 1 cell, PCB mounting, BATTERIEHALTER 502
Order No.: 28A1028
EAN: 4099889641653
MPN:
BATTERIEHALTER 502
Unit Price (€ / pc.)
2.4514 € *
Available: 50 pcs.
Leadtime: On Request **
Total Price:
2.45 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4514 €
10 pcs.
2.1658 €
100 pcs.
1.8921 €
250 pcs.
1.8088 €
*incl. VAT plus shipping costs
**Subject to prior sale

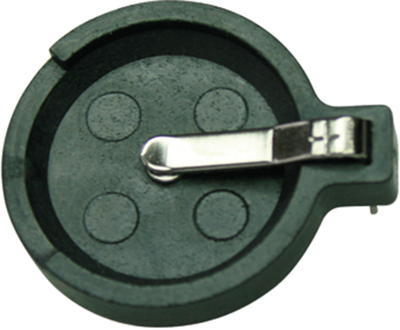

Battery holders for button cells, type KE 500/502.
Suitable for one button cell with a diameter of 12 or 16 mm; Insulator: PBT to UL 94 V-0, black. Contacts: spring steel, nickel-plated on copper substrate. For one 16 mm cell. Dimension J: 2.54 mm.

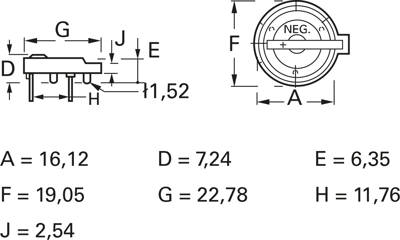

Technical attributes (type, dimensions A/D/E/F/G/H): 502, A 16.12/D 7.24/E 6.35/F 19.05/G 22.78/H 11.76 mm
Technical specifications
| Usage | button cell Ø 12/16 mm | |
| Number of cells | 1 | |
| Assembly | PCB mounting |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
