00000143 | Cable Holders
Mounting clamp, max. bundle Ø 9 mm, PA, light gray, self-adhesive, (L x W x H) 25.3 x 25.2 x 13.5 mm, 00000143
Order No.: 12H4104
EAN: 4099891205041
MPN:
00000143
Unit Price (€ / pc.)
0.4998 € *
Available: 2,015 pcs.
Leadtime: 2 Weeks **
Total Price:
0.50 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4998 €
10 pcs.
0.4641 €
100 pcs.
0.4165 €
500 pcs.
0.3808 €
1000 pcs.
0.3451 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plastic cable clips, type S.
Self-adhesive, free of exhaustion. Made of polyamide injection mold, self-extinguishing according to UL 94 V-2. With safe and handy snap lock and reliable permanent adhesive with immediate adhesion; Design: resistant to permanent temperatures up to +110 °C, rounded protective edges. Color: light-gray.

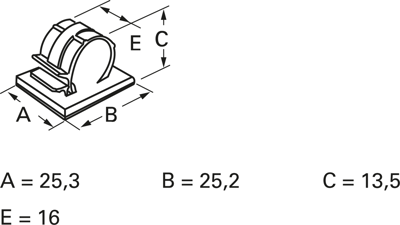

Technical attributes (type, harness diameter (D), dimensions): 375 S, 9.0, A 25.3, B 25.2, C 13.5, E 16 mm
Technical specifications
| Version | mounting clamp | |
| Width | 25.2 mm | |
| Colour | light gray | |
| Height | 13.5 mm | |
| Length | 25.3 mm | |
| Material | PA | |
| max. Bundle diameter | 9 mm | |
| Self-adhesive | Yes |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
