00000145 | Cable Holders
Mounting clamp, max. bundle Ø 16 mm, PA, light gray, self-adhesive, (L x W x H) 34.7 x 30.3 x 20.7 mm, 00000145
Order No.: 12H4108
EAN: 4099891205065
MPN:
00000145
Unit Price (€ / pc.)
0.7854 € *
Available: 515 pcs.
Leadtime: 2 Weeks **
Total Price:
0.79 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7854 €
10 pcs.
0.7140 €
100 pcs.
0.6545 €
500 pcs.
0.5831 €
1000 pcs.
0.5355 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plastic cable clips, type S.
Self-adhesive, free of exhaustion. Made of polyamide injection mold, self-extinguishing according to UL 94 V-2. With safe and handy snap lock and reliable permanent adhesive with immediate adhesion; Design: resistant to permanent temperatures up to +110 °C, rounded protective edges. Color: light-gray.

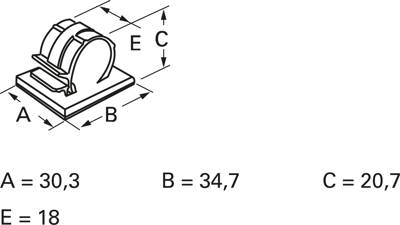

Technical attributes (type, harness diameter (D), dimensions): 625 S, 16, A 30.3, B 34.7, C 20.7, E 18 mm
Technical specifications
| Version | mounting clamp | |
| Width | 30.3 mm | |
| Colour | light gray | |
| Height | 20.7 mm | |
| Length | 34.7 mm | |
| Material | PA | |
| max. Bundle diameter | 16 mm | |
| Self-adhesive | Yes |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
