LIYCY 12X0,14 GRAU | Control Cables

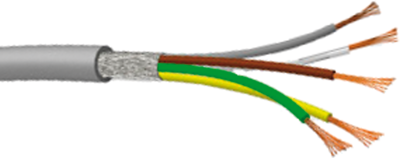

PVC control line LiYCY 12 x 0.14 mm², shielded, gray, LIYCY 12X0,14 GRAU
Unit Price (€ / mtr.)
2.9512 € *
Available: 1,317 mtr.
Leadtime: 15 Weeks **
Total Price:
2.95 € *
Price list
Quantity
Price per unit*
1 mtr.
2.9512 €
10 mtr.
2.5942 €
100 mtr.
2.2848 €
200 mtr.
2.2015 €
800 mtr.
2.0468 €
*incl. VAT plus shipping costs
**Subject to prior sale
PVC control cables, shielded, type LiYCY.
Conductors with color coded insulation. Twisted in layers. Without color repetition to DIN 47100
Cross-section 0.14 mm².
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | DIN 47100 | |
| Number of cores | 12 | |
| Version | control line | |
| Outer diameter | 6.3 mm | |
| Colour | gray | |
| Cable material | copper, bright | |
| Cable cross-section | 0.14 mm² | |
| Material | PVC | |
| Rated voltage | 250 V | |
| Test voltage | 2 kV | |
| Shielding | shielded | |
| Temperature range (active) | -15 °C to 70 °C | |
| Temperature range (unmoved) | -30 °C to 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
