LIYY-JZ 20X1,00 GRAU | Control Cables
PVC control line LiYY-JZ 20 G 1.0 mm², AWG 18, unshielded, gray, LIYY-JZ 20X1,00 GRAU
Unit Price (€ / mtr.)
9.1035 € *
Available: 0 mtr.
Leadtime: 10 Weeks **
Total Price:
9.10 € *
Price list
Quantity
Price per unit*
1 mtr.
9.1035 €
10 mtr.
8.1158 €
50 mtr.
7.1400 €
100 mtr.
6.6402 €
500 mtr.
5.9024 €
*incl. VAT plus shipping costs
**Subject to prior sale

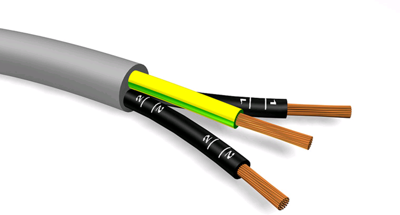

PVC control cables, non-shielded, with number coding, type LiYY-JZ/OZ.
Flexible
Cross-section 1.0 mm².
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | black/green-yellow | |
| Number of cores | 20 | |
| Version | control line | |
| Outer diameter | 13.6 mm | |
| AWG cross-section | AWG 18 | |
| Colour | gray | |
| Cable material | copper, bright | |
| Cable cross-section | 1.0 mm² | |
| Material | PVC | |
| Rated voltage | 500 V | |
| Test voltage | 2.5 kV | |
| Shielding | unshielded | |
| Protective conductor available | Yes | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -30 °C to 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
