2-LIYCY TP 5X2X0,14 GR | Data Cables
PVC data cable, 10-wire, 0.14 mm², gray, 2-LIYCY TP 5X2X0,14 GR
Unit Price (€ / mtr.)
5.1408 € *
Available: 400 mtr.
Next delivery: 200 mtr. on 2025-02-22
Leadtime: 18 Weeks **
Total Price:
5.14 € *
Price list
Quantity
Price per unit*
1 mtr.
5.1408 €
10 mtr.
4.7005 €
100 mtr.
4.1174 €
500 mtr.
3.6771 €
1000 mtr.
3.2249 €
*incl. VAT plus shipping costs
**Subject to prior sale

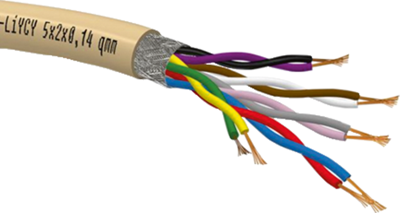

PVC control cables, shielded, twisted-pair, type 2-LiYCY (TP).
Cross-section 0.14 mm².
Stranded wire structure 18 x 0.10 mm
Technical specifications
| Core insulation material | PVC | |
| Number of cores | 10 | |
| Version | data cable | |
| Outer diameter | 6.7 mm | |
| Colour | gray | |
| Cable material | copper, bright | |
| Cable cross-section | 0.14 mm² | |
| Material | PVC | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -30 °C to 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
