2-LIYCY TP 8X2X0,14 GR | Data Cables
PVC data cable, 16-wire, 0.14 mm², gray, 2-LIYCY TP 8X2X0,14 GR
Unit Price (€ / mtr.)
4.1531 € *
Available: 45 mtr.
Leadtime: 18 Weeks **
Total Price:
4.15 € *
Price list
Quantity
Price per unit*
1 mtr.
4.1531 €
10 mtr.
3.7961 €
100 mtr.
3.3201 €
500 mtr.
2.9750 €
1000 mtr.
2.6061 €
*incl. VAT plus shipping costs
**Subject to prior sale

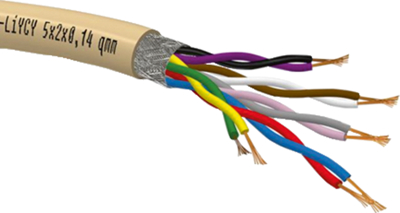

PVC control cables, shielded, twisted-pair, type 2-LiYCY (TP).
Cross-section 0.14 mm².
Stranded wire structure 18 x 0.10 mm
Technical specifications
| Core insulation material | PVC | |
| Number of cores | 16 | |
| Version | data cable | |
| Outer diameter | 8 mm | |
| Colour | gray | |
| Cable material | copper, bright | |
| Cable cross-section | 0.14 mm² | |
| Material | PVC | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -30 °C to 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
