DCY 8X2 AWG28/7 GR | Data Cables

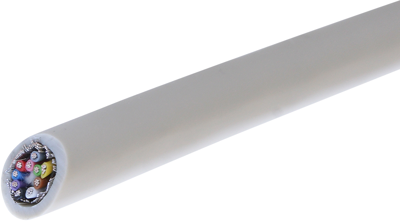

PVC data cable, 16-wire, 0.089 mm², AWG 28, gray, DCY 8X2 AWG28/7 GR
Unit Price (€ / mtr.)
5.4978 € *
Available: 100 mtr.
Leadtime: 10 Weeks **
Total Price:
5.50 € *
Price list
Quantity
Price per unit*
1 mtr.
5.4978 €
10 mtr.
4.9980 €
50 mtr.
4.6291 €
100 mtr.
4.2483 €
500 mtr.
3.8675 €
*incl. VAT plus shipping costs
**Subject to prior sale

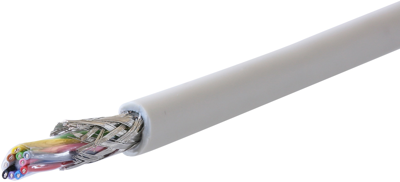

Data cable twisted pair, UL-Style 2560, 8 x 2 x AWG 28/7, gray
Technical specifications
| Core insulation material | special PVC | |
| Number of cores | 16 | |
| Version | data cable | |
| Outer diameter | 6.2 mm | |
| AWG cross-section | AWG 28 | |
| Colour | gray | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 0.089 mm² | |
| Material | PVC | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -30 °C to 80 °C |
Download
Logistics
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
