72800 | Flat Plugs

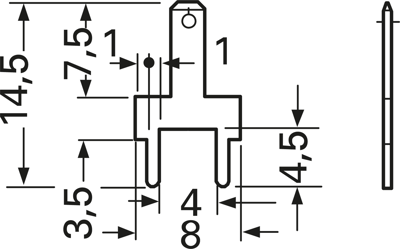

Faston plug, 2.8 x 0.8 mm, L 14.5 mm, uninsulated, straight, 72800
Order No.: 05F2162
EAN: 4099889611373
MPN:
72800
No longer available from manufacturer
Unit Price (€ / pc.)
0.4403 € *
Available: 776 pcs.
Leadtime: 3 Weeks **
Total Price:
0.44 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4403 €
10 pcs.
0.4046 €
100 pcs.
0.3570 €
1000 pcs.
0.2654 €
10000 pcs.
0.2285 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB mounting tabs, type 00.12b.
Mating width 2.8 mm, mating thickness 0.8 mm, with snap-in hole, made of tinned brass, not insulated, to DIN 46244.
Type: 00.12b, PCB mounting tab
Technical specifications
| Connection | solder connection | |
| Version | faston plug | |
| Design | straight | |
| Isolated | No | |
| Length | 14.5 mm | |
| Material | brass, tin-plated | |
| Nominal size according to DIN | DIN 46244 | |
| Plug width x plug thickness | 2.8 x 0.8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
