72842 | Flat Plugs

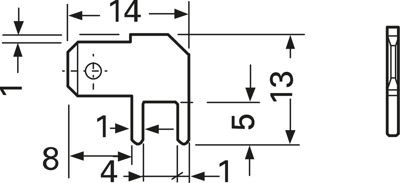

Faston plug, 4.8 x 0.8 mm, L 14 mm, uninsulated, angled, 72842
Order No.: 05F244
EAN: 4099889611458
MPN:
72842
Unit Price (€ / pc.)
0.4641 € *
Available: 847 pcs.
Leadtime: 1 Week **
Total Price:
0.46 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4641 €
10 pcs.
0.4046 €
100 pcs.
0.3451 €
1000 pcs.
0.2975 €
10000 pcs.
0.2380 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB mounting tabs, type 00.12.
Mating width 4.8 mm, mating thickness 0.8 mm, with snap-in hole, made of tinned brass, not insulated, to DIN 46244.
Type: 00.12, PCB mounting tab
Technical specifications
| Connection | solder connection | |
| Version | faston plug | |
| Design | angled | |
| Isolated | No | |
| Length | 14 mm | |
| Material | brass, tin-plated | |
| Nominal size according to DIN | DIN 46244 | |
| Plug width x plug thickness | 4.8 x 0.8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
