FLRY-B 0,75 BL | Insulated stranded wires

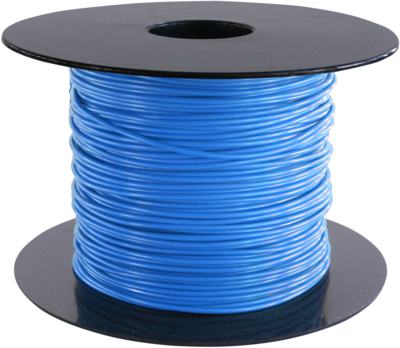

PVC-automotive cable, FLRY-B, 0.75 mm², blue, outer Ø 1.9 mm, FLRY-B 0,75 BL
Unit Price (€ / pck.)
33.9150 € *
Available: 3 pck.
Next delivery: 5 pck. on 2025-03-20
Leadtime: 10 Weeks **
Total Price:
33.92 € *
Price list
Quantity
Price per unit*
1 pck.
33.9150 €
5 pck.
31.8801 €
15 pck.
30.6544 €
50 pck.
29.2978 €
150 pck.
28.0721 €
*incl. VAT plus shipping costs
**Subject to prior sale
PVC cables for automotive applications, type FLRY-B.
Thin insulation; Conductors: stranded wire made of tempered round wires, Cu-ETP1-A021-P, bright, to DIN EN 13602. Cable structure: type B to DIN 72551-6. Insulation: PVC-P. Test voltage max. 1.0 kVRMS. Operating temperatures: –40 to +105 °C.
Cross-section 0.75 mm², outer diameter 1.9 mm,.
Cable structure: 24 x 0.21 mm. Conductor resistance (at +20 °C): 24.7 mohm/m.
Type: blue
Technical specifications
| Aderisolationsmaterial | PVC | |
| Außendurchmesser | 1.9 mm | |
| Farbe | blau | |
| Halogenfrei | No | |
| Leiteraufbau | 24 x 0,21 mm | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 0,75 mm² | |
| Prüfspannung | 1 kV | |
| Temperaturbereich (bewegt) | -40 °C bis 105 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 105 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444993 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
