FLRY-B 1,5 SW | Insulated stranded wires

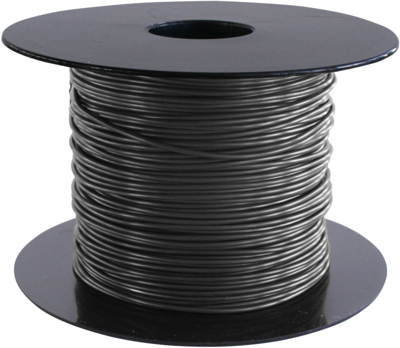

PVC-automotive cable, FLRY-B, 1.5 mm², black, outer Ø 2.4 mm, FLRY-B 1,5 SW
Unit Price (€ / pck.)
55.1684 € *
Available: 5 pck.
Next delivery: 7 pck. on 2025-04-24
Leadtime: 10 Weeks **
Total Price:
55.17 € *
Price list
Quantity
Price per unit*
1 pck.
55.1684 €
5 pck.
51.8483 €
15 pck.
49.8729 €
50 pck.
47.6714 €
150 pck.
45.6722 €
*incl. VAT plus shipping costs
**Subject to prior sale
PVC cables for automotive applications, type FLRY-B.
Thin insulation; Conductors: stranded wire made of tempered round wires, Cu-ETP1-A021-P, bright, to DIN EN 13602. Cable structure: type B to DIN 72551-6. Insulation: PVC-P. Test voltage max. 1.0 kVRMS. Operating temperatures: –40 to +105 °C.
Cross-section 1.5 mm², outer diameter 2.4 mm,.
Cable structure: 30 x 0.26 mm. Conductor resistance (at +20 °C): 12.7 mohm/m.
Type: black
Technical specifications
| Aderisolationsmaterial | PVC | |
| Außendurchmesser | 2.4 mm | |
| Farbe | schwarz | |
| Halogenfrei | No | |
| Leiteraufbau | 30 x 0,26 mm | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 1,5 mm² | |
| Prüfspannung | 1 kV | |
| Temperaturbereich (bewegt) | -40 °C bis 105 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 105 °C |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85444993 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
