H07Z-K 2,50 BL | Insulated stranded wires

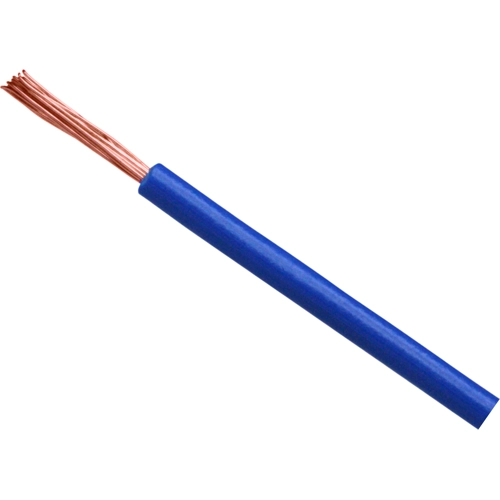

Polymer-Stranded wire, high flexible, halogen free, H07Z-K, 2.5 mm², blue, outer Ø 4.3 mm, H07Z-K 2,50 BL
Unit Price (€ / mtr.)
0.5950 € *
Available: 0 mtr.
Leadtime: 4 Weeks **
Total Price:
0.60 € *
Price list
Quantity
Price per unit*
500 mtr.
0.5950 €
1000 mtr.
0.4998 €
*incl. VAT plus shipping costs
**Subject to prior sale
Heat-resistant hook-up wires, halogen-free, type H05Z-K/H07Z-K.
To VDE 0282 part 9
Cross-section 2.5 mm², outer diameter 4.3 mm, type H07Z-K.
Technical specifications
| Aderisolationsmaterial | Polymer | |
| Außendurchmesser | 4.3 mm | |
| Farbe | blau | |
| Halogenfrei | Yes | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 2,5 mm² | |
| Nennspannung | 750 V | |
| Nennspannung U0 | 450 V | |
| Norm | VDE 0282 | |
| Prüfspannung | 2.5 kV | |
| Temperaturbereich (bewegt) | -40 °C bis 90 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
| Originalverpackung | Ring mit 100 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
