UL STYLE 1007 AWG 22 GRAU | Insulated stranded wires
PVC-switching strand, UL-Style 1007/1569, AWG 22, gray, outer Ø 1.65 mm, UL STYLE 1007 AWG 22 GRAU
Unit Price (€ / mtr.)
0.2832 € *
Available: 1,830 mtr.
Leadtime: 10 Weeks **
Stranded wire, UL STYLE 1007 AWG 22 gray, N.A.
UL approved stranded wires according to UL AWM Style 1007/1569, for internal wiring of in electrical equipment and control boxes. Conductor: tinned stranded copper wire, conductor construction: 7 x 0.25 mm, insulation: special PVC, Shore hardness (A) 88 ±3, flame retardant according to UL VW-1/CSA FT-1 and IEC 60332-1-2. Conductor resistance: 53 Ω/km at 20° C, dielectric strength: min. 3000 V/50 Hz (1 min.), insulation resistance: min. 100 MΩ x km, operating voltage: max. 300 V. Temperature range static/dynamic: -30 to 105 °C (UL/CSA 90° C)/-10 to 105 °C (UL/CSA 90° C).
Technical specifications
| Aderisolationsmaterial | PVC | |
| Außendurchmesser | 1.65 mm | |
| AWG-Leiterquerschnitt | AWG 22 | |
| Farbe | grau | |
| Halogenfrei | No | |
| Leiteraufbau | 7 x 0,25 mm | |
| Leitermaterial | Kupfer, verzinnt | |
| Nennspannung | 300 V | |
| Norm | UL | |
| Prüfspannung | 3 kV | |
| Temperaturbereich (bewegt) | -5 °C bis 105 °C | |
| Temperaturbereich (unbewegt) | -30 °C bis 105 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |

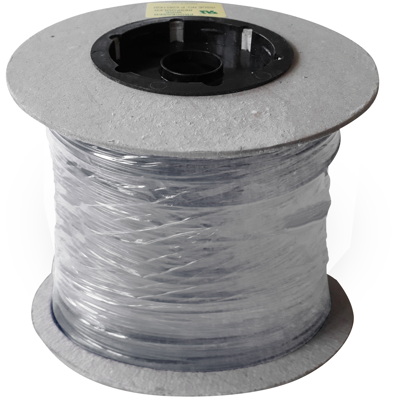

| Originalverpackung | Rolle mit 610 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
