UL STYLE 1015 AWG 16 SCHWARZ | Insulated stranded wires

PVC-switching strand, UL-Style 1015, AWG 16, black, outer Ø 3.3 mm, UL STYLE 1015 AWG 16 SCHWARZ

Order No.: 91F845
EAN: 4099891173678
MPN:
UL STYLE 1015 AWG 16 SCHWARZ
Series: UL-Style 1015
UL STYLE 1015 AWG 16 SCHWARZ Insulated stranded wires

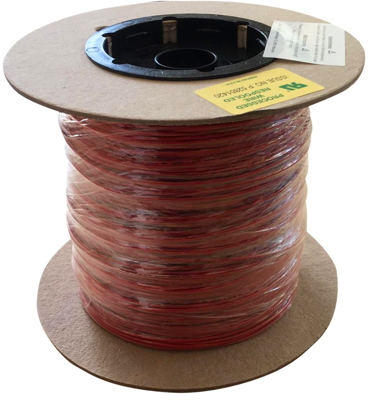

Image may differ
Unit Price (€ / mtr.)
0.5593 € *
Available: 305 mtr.
Leadtime: 10 Weeks **
Total Price:
170.59 € *
*incl. VAT plus shipping costs
**Subject to prior sale
305 mtr.
0.5593 €

Stranded wire, UL STYLE 1015 AWG 16 BLACK, N.A.

UL approved stranded wire according to UL AWM Style 1015. Conductor: tinned stranded copper wire, conductor construction: 41 x 0.203 mm, insulation: special PVC, Shore hardness: 89 ±3, flame retardant according to UL VW-1/CSA FT-1, conductor resistance: max. 10.1 Ω/km at 20° C, testing voltage: 6000 V, insulation resistance: min. 20 MΩ x km at 20° C, operating voltage: max. 600 V. Temperature range static/dynamic: -30 to 105 °C/-10 to 105 °C.

Technical specifications
Aderisolationsmaterial PVC
Außendurchmesser 3.3 mm
AWG-Leiterquerschnitt AWG 16
Farbe schwarz
Halogenfrei No
Leiteraufbau 41 x 0,203 mm
Leitermaterial Kupfer, verzinnt
Nennspannung U0 600 V
Norm UL, CSA
Prüfspannung 6 kV
Temperaturbereich (bewegt) -10 °C bis 105 °C
Temperaturbereich (unbewegt) -30 °C bis 105 °C
Logistics
Ursprungsland DE
Zolltarifnummer 85444995
Originalverpackung Rolle mit 305 Meter
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
