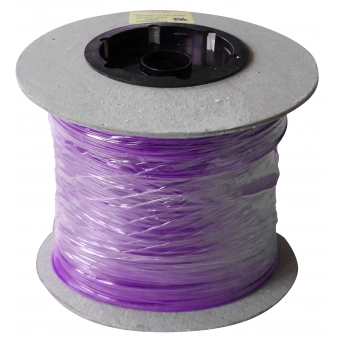

UL STYLE 1061 AWG 24 VIOLETT | Insulated stranded wires

PVC-switching strand, UL-Style 1061/10002, AWG 24, purple, outer Ø 1.2 mm, UL STYLE 1061 AWG 24 VIOLETT

Order No.: 91F5322
EAN: 4099891599911
MPN:
UL STYLE 1061 AWG 24 VIOLETT
Series: UL-Style 1061/10002
UL STYLE 1061 AWG 24 VIOLETT Insulated stranded wires
Image may differ
Print
Key Specification:
AWG cross-section AWG 24
Cable structure 7 x 0.2 mm
Colour purple
Core insulation material PVC

Ordering Information:

610 meters = 2000 feet
Show 45 variants
Download Datasheet Technical specifications
Unit Price (€ / mtr.)
0.2023 € *
Available: 0 mtr.
Leadtime: 16 Weeks **
Add to Cart
Total Price:
0.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
610 mtr.
0.2023 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
PVC-switching strand, UL-Style 1061/10002, 0.22 mm², AWG 24, purple, outer Ø 1.2 mm
Technical specifications
Core insulation material PVC
Outer diameter 1.2 mm
AWG cross-section AWG 24
Colour purple
Cable structure 7 x 0.2 mm
Cable material copper, tin-plated
Rated voltage 300 V
Test voltage 1.5 kV
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85444995
Original Packaging Reel with 610 meters
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
