150 32 03 | Nuts, Washers, Rings
Contact washer, M3, H 0.6 mm, outer Ø 6.2 mm, spring steel, DIN 17222, 150 32 03
Order No.: 16H9822
EAN: 4099889503258
MPN:
150 32 03
Unit Price (€ / pc.)
0.0417 € *
Available: 10,474 pcs.
Leadtime: 5 Weeks **
Total Price:
4.17 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0417 €
1000 pcs.
0.0381 €
5000 pcs.
0.0345 €
10000 pcs.
0.0309 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contact washers for cable connections, type 3.20.
Toothed bottom, for electrical connections (ground terminals etc.); Material: spring steel. Teeth: 6.

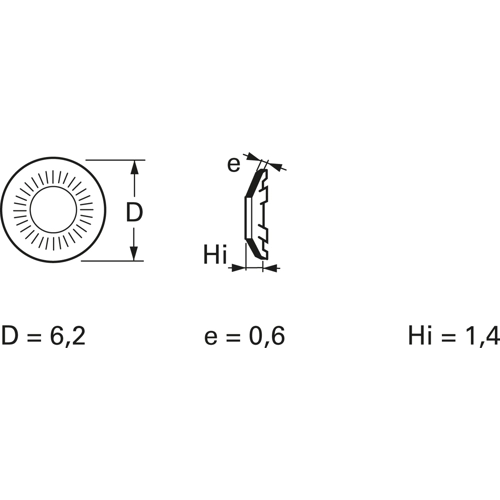

Technical attributes (suitable screw, washer diameter/ material thickness/ maximum camber): size M 3, 6.2/ 0.6/ 1.4 mm.
Technical specifications
| Version | Contact washer | |
| Outer diameter | 6.2 mm | |
| Thread size | M3 | |
| Height | 0.6 mm | |
| Material | spring steel | |
| Standard number | DIN 17222 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 73182100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
