05335 A | Power Transformers
Universal transformer, 75 VA, 10 V/12 V/15 V, 2.5 A, 05335 A
Order No.: 35C130
EAN: 4099891343804
MPN:
05335 A
Unit Price (€ / pc.)
63.7721 € *
Available: 11 pcs.
Leadtime: 6 Weeks **
Total Price:
63.77 € *
Price list
Quantity
Price per unit*
1 pcs.
63.7721 €
5 pcs.
59.9522 €
15 pcs.
57.6555 €
50 pcs.
55.1089 €
150 pcs.
52.8003 €
*incl. VAT plus shipping costs
**Subject to prior sale

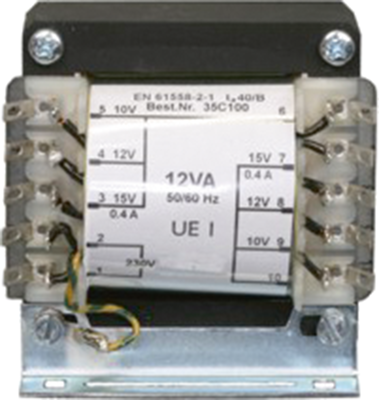

Universal transformers, type UE 4
Electrically isolated windings (types UE 4 with protective winding). Secondary 2 x 0, 10, 12, 15 V. The two secondary windings can be wired in serial or parallel mode to obtain the following secondary voltages: 2, 3, 4, 5, 6, 7, 8, 10, 12, 13, 14, 15, 17, 18, 20, 22, 24, 25, 27, 30 V.
Technical specifications
| Output power | 75 W | |
| Width | 63.5 mm | |
| Height | 91 mm | |
| Length | 85 mm | |
| Primary voltage | 230 V | |
| Secondary voltage (1) | 10 V | |
| Secondary voltage (2) | 12 V | |
| Secondary voltage (3) | 15 V | |
| Secondary amperage 1 | 2.5 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85043180 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
