DSP 9911/10-E | Pumps
Hose pump, Epsilon 10
Order No.: 93B300
EAN: 4099891527679
MPN:
DSP 9911/10-E
1001913
Unit Price (€ / pc.)
97.2111 € *
Available: 6 pcs.
Leadtime: 3 Weeks **
Total Price:
97.21 € *
Price list
Quantity
Price per unit*
1 pcs.
97.2111 €
5 pcs.
90.2734 €
*incl. VAT plus shipping costs
**Subject to prior sale

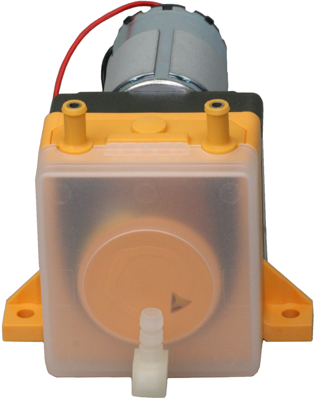

Self-priming hose pump, with fixed pump capacity for depressurized dosing of liquid media. Features: constant discharge rate, simple fastening with mounting base, snap-on lid for quick replacement of the pump hose, robust rotor, rugged pump casing, ball bearing gear drive, suitable for different hose materials. the pump operates with full discharge power at the rated voltage.
Operation: 24 VDC
Rated current: 250 mA
Discharge capacity: approx. 166 ml/min (water, suction head 1.7 m)
Fitting: for tubing with 6.0 mm inner Diameter
Ambient temperatures: 10 to 55 °C
Degree of protection: IP 00

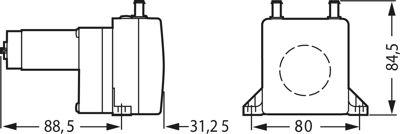

Dimensions: 85 x 85 x 120 mm
Mounting dimension: 80 mm
Weight: approx. 300 g
Type: Epsilon 10, hose pump
Technical specifications
| Width | 85 mm | |
| Conveying Capacity | 166 ml/min | |
| Height | 85 mm | |
| Length | 120 mm | |
| Rated voltage (DC) | 24 V | |
| Rated current | 250 mA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84138100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
