MARUSHIN, PUSH-OFF | Pushbutton Switches
Pushbutton, black, unlit , 1 A/225 V, mounting Ø 7 mm, MARUSHIN, PUSH-OFF
Order No.: 12G292
EAN: 4099889190335
MPN:
MARUSHIN, PUSH-OFF
Unit Price (€ / pc.)
1.9992 € *
Available: 0 pcs.
Next delivery: 199 pcs. on 2025-02-07
Leadtime: On Request **
Total Price:
2.00 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9992 €
25 pcs.
1.6898 €
100 pcs.
1.5589 €
250 pcs.
1.4875 €
1000 pcs.
1.3566 €
*incl. VAT plus shipping costs
**Subject to prior sale

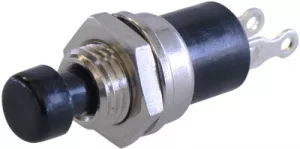

Pushbutton switches, type MS-.
Mounting diameter: 7.0 mm. Solder connection. Breaking capacity: 1.0 A/125 VAC.
With one NC contact.
Type: MS-313, black
Technical specifications
| Anschluss | Lötanschluss | |
| Bedruckt | No | |
| beleuchtet | No | |
| Einbaudurchmesser | 7 mm | |
| Farbe Betätiger | schwarz | |
| Schaltfunktion | tastend | |
| Schaltleistung | 1 A/225 V |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
