FBL 06P AWG28 GRAU | Ribbon Cables
Ribbon cable, 6 pole, pitch 1.27 mm, 0.09 mm², AWG 28, PVC, gray, FBL 06P AWG28 GRAU
Order No.: 94F442
EAN: 4099891235017
MPN:
FBL 06P AWG28 GRAU
Unit Price (€ / mtr.)
1.1543 € *
Available: 9,686 mtr.
Leadtime: 10 Weeks **
Total Price:
1.15 € *
Price list
Quantity
Price per unit*
1 mtr.
1.1543 €
10 mtr.
1.0353 €
100 mtr.
0.9639 €
500 mtr.
0.8449 €
1000 mtr.
0.7616 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flat ribbon cables, 1.27 mm grid, type FB..28127G.
Technical specifications
| Core insulation material | PVC | |
| Number of cores | 6 | |
| Version | Flachbandleitung | |
| AWG cross-section | AWG 28 | |

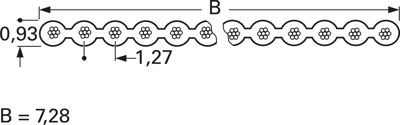

| Width | 7.28 mm | |
| Colour | grau | |
| Halogen free | No | |
| Height | 0.93 mm | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 0,09 mm² | |
| Rated voltage | 300 V | |
| Test voltage | 2 kV | |
| Grid | 1.27 mm | |
| Shielding | ungeschirmt | |
| Temperature range (active) | -20 °C bis 105 °C | |
| Temperature range (unmoved) | -30 °C bis 105 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Rolle mit 100 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
