FBL 14P AWG28 DIN47100 | Ribbon Cables

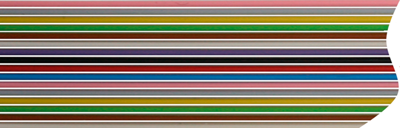

Flat ribbon cable, 14 pole, pitch 1.27 mm, 0.09 mm², AWG 28, PVC, FBL 14P AWG28 DIN47100
Order No.: 94F594
EAN: 4099891235383
MPN:
FBL 14P AWG28 DIN47100
Unit Price (€ / mtr.)
4.0936 € *
Available: 283 mtr.
Leadtime: 19 Weeks **
Total Price:
4.09 € *
Price list
Quantity
Price per unit*
1 mtr.
4.0936 €
25 mtr.
3.4867 €
100 mtr.
3.2249 €
250 mtr.
3.0464 €
1000 mtr.
2.7965 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flat ribbon cables, 1.27 mm grid, type FB..28127B.
Technical specifications
| Core insulation material | PVC | |
| Number of cores | 14 | |
| Version | flat ribbon cable | |
| AWG cross-section | AWG 28 | |
| Width | 17.51 mm | |
| Halogen free | No | |
| Height | 1 mm | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 0.09 mm² | |
| Rated voltage | 300 V | |
| Test voltage | 2 kV | |
| Grid | 1.27 mm | |
| Shielding | unshielded | |
| Temperature range (active) | -20 °C to 105 °C | |
| Temperature range (unmoved) | -30 °C to 105 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
