FBL 40P AWG28 IEC | Ribbon Cables

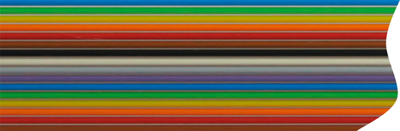

Ribbon cable, 40 pole, pitch 1.27 mm, 0.09 mm², AWG 28, PVC, FBL 40P AWG28 IEC
Order No.: 94F626
EAN: 4099891235512
MPN:
FBL 40P AWG28 IEC
Unit Price (€ / mtr.)
10.9837 € *
Available: 126 mtr.
Leadtime: 10 Weeks **
Total Price:
10.98 € *
Price list
Quantity
Price per unit*
1 mtr.
10.9837 €
10 mtr.
9.6628 €
50 mtr.
8.7822 €
100 mtr.
8.1277 €
500 mtr.
7.4613 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flat ribbon cables, 1.27 mm grid, type FB..28127I.
Technical specifications
| Core insulation material | PVC | |
| Number of cores | 40 | |
| Version | Flachbandleitung | |
| AWG cross-section | AWG 28 | |
| Width | 50.53 mm | |
| Halogen free | No | |
| Height | 1 mm | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 0,09 mm² | |
| Rated voltage | 300 V | |
| Test voltage | 2 kV | |
| Grid | 1.27 mm | |
| Shielding | ungeschirmt | |
| Temperature range (active) | -20 °C bis 105 °C | |
| Temperature range (unmoved) | -30 °C bis 105 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
