ABST.BOLZEN IA M3-UNCX5 VERZ. | Spacer Bolts
Hexagon spacer bolt, External/Internal Thread, M3/4-40 UNC, 5 mm, steel, ABST.BOLZEN IA M3-UNCX5 VERZ.
Order No.: 18H3596
EAN: 4099889493207
MPN:
ABST.BOLZEN IA M3-UNCX5 VERZ.
Unit Price (€ / pc.)
0.2392 € *
Available: 52,795 pcs.
Leadtime: On Request **
Total Price:
2.39 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2392 €
50 pcs.
0.2154 €
100 pcs.
0.1868 €
500 pcs.
0.1666 €
1000 pcs.
0.1190 €
*incl. VAT plus shipping costs
**Subject to prior sale

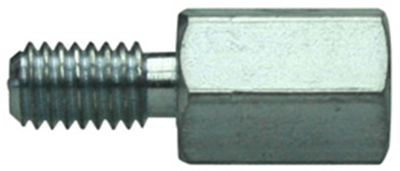

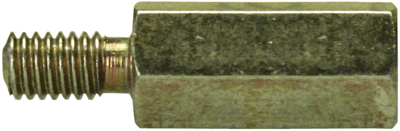

Hexagonal spacer bolts, steel, UNC thread on one end, type UNC.
With inner and outer thread, galvanized. Suitable, e.g. for sub-D connectors

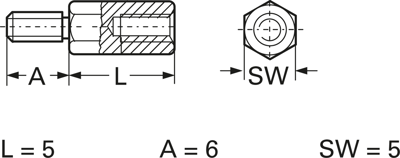

Technical specifications
| Version | External/Internal Thread | |
| External thread length | 6 mm | |
| Design | hexagon | |
| Bolt length | 5 mm | |
| Colour | silver | |
| Thread size | M3/4-40 UNC | |
| Inner diameter | 5 mm | |
| Internal thread length | 3 mm | |
| Length | 11 mm | |
| Material | steel | |
| spanner size | 5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 73181575 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
