J-Y(ST)Y 12X2X0,6 | Telecommunication Cables
Telecommunications cable, 24-wire, J-Y(ST)Y, 12 x 2 x 0.6 mm, gray, PVC, J-Y(ST)Y 12X2X0,6
Unit Price (€ / mtr.)
1.4280 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
1.43 € *
Price list
Quantity
Price per unit*
100 mtr.
1.4280 €
500 mtr.
1.3209 €
*incl. VAT plus shipping costs
**Subject to prior sale

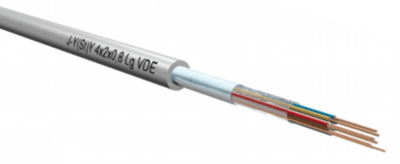

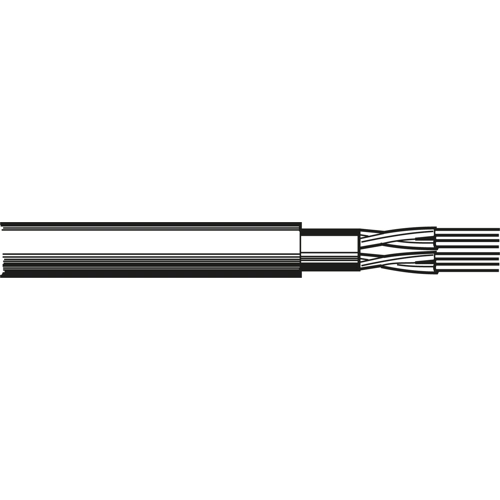

Data and telecommunication cables, shielded, type J-Y(St)Y.
Cables to VDE 0815 for permanent installation within and outside of closed rooms, copper wire, bright, with color-coded PVC insulation, twisted pairs in layers with foil winding, add-on wire and common aluminum foil with plastic backing
Cross-section 0.6 mm².
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | DIN VDE 0815 | |
| Number of cores | 24 | |
| Outer diameter | 9.5 mm | |
| Colour | gray | |
| Inner diameter | 0.6 mm | |
| Cable structure | 12 x 2 x 0.6 mm | |
| Cable material | copper, bright | |
| Material | PVC | |
| Temperature range (active) | -5 °C to 50 °C | |
| Temperature range (unmoved) | -30 °C to 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444991 |
| Original Packaging | Ring with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
