2CDS251001R0325 | ABB

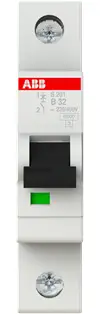

Circuit breaker, 1 pole, B Curve, 32 A, 230 VAC, DIN rail, 2CDS251001R0325
Unit Price (€ / pc.)
11.7810 € *
Available: 11 pcs.
Leadtime: On Request **
Total Price:
11.78 € *
Price list
Quantity
Price per unit*
1 pcs.
11.7810 €
10 pcs.
10.9004 €
50 pcs.
10.0079 €
100 pcs.
9.4248 €
500 pcs.
8.8298 €
*incl. VAT plus shipping costs
**Subject to prior sale
Automatic circuit breakers, type ABB Stotz S 20.
Automatic circuit breaker for mounting rails to EN 60715, 35 mm; Rated voltage: 230/400 VAC. Operating voltage: max. 253/multi-pole 440 VAC. DC voltage max.: single-pole 72 VDC/double-pole 125 VDC. Insulation group: C at 250 VAC, B at 380 VAC. Operating temperatures: –25 to +55 °C. Connection cross-sections: up to 16 mm². Mounting depth: 68 mm.
With characteristics B, type S 201-B.
Tripping characteristics: B for line protection to DIN VDE 0641/T 11 (replaces the former L-characteristics for standard automatic circuit breakers).
Technical attributes (type, number of poles, rated current): S 201-B32, single-pole, 32 A
Technical specifications
| Auslösecharakteristik | B | |
| Bemessungsspannung | 230 VAC | |
| Bemessungsstrom | 32 A | |
| Montage | DIN-Schiene | |
| Nennspannung (AC) | 253 V | |
| Nennspannung (DC) | 72 V | |
| Polzahl | 1-polig | |
| Schutzart (IP) | IP20 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85362010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
