2CDS251001R0377 | ABB

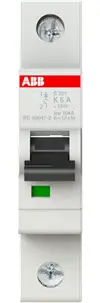

Circuit breaker, 1 pole, K Curve, 6 A, 230 VAC, DIN rail, 2CDS251001R0377
Unit Price (€ / pc.)
74.1013 € *
Available: 3 pcs.
Leadtime: 1 Week **
Total Price:
74.10 € *
Price list
Quantity
Price per unit*
1 pcs.
74.1013 €
5 pcs.
68.6154 €
10 pcs.
64.7241 €
25 pcs.
61.0708 €
50 pcs.
58.1553 €
*incl. VAT plus shipping costs
**Subject to prior sale
Automatic circuit breakers, type ABB Stotz S 20.
Automatic circuit breaker for mounting rails to EN 60715, 35 mm; Rated voltage: 230/400 VAC. Operating voltage: max. 253/multi-pole 440 VAC. DC voltage max.: single-pole 72 VDC/double-pole 125 VDC. Insulation group: C at 250 VAC, B at 380 VAC. Operating temperatures: –25 to +55 °C. Connection cross-sections: up to 16 mm². Mounting depth: 68 mm.
With characteristics K, type S 201/202/203-K.
Tripping characteristics: K to DIN VDE 0660 for power circuits, motors, transformers, lamps and line protection. For use wherever consumers with high start-up currents and surge peaks are involved.
Technical attributes (type, number of poles, rated current): S 201-K6.0, single-pole, 6.0 A
Technical specifications
| Auslösecharakteristik | K | |
| Bemessungsspannung | 230 VAC | |
| Bemessungsstrom | 6 A | |
| Montage | DIN-Schiene | |
| Nennspannung (AC) | 253 V | |
| Nennspannung (DC) | 72 V | |
| Polzahl | 1-polig | |
| Schutzart (IP) | IP20 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85361010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
