2CSF202101R1250 | ABB

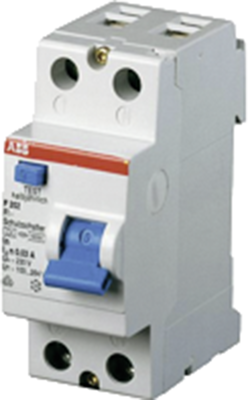

Residual current circuit breaker, 2 pole, 25 A, 30 mA, type A, 230 V, 2CSF202101R1250
Order No.: 06N6502
EAN: 8012542782506
MPN:
2CSF202101R1250
F202A-25/0,03
Unit Price (€ / pc.)
56.1918 € *
Available: 1 pcs.
Next delivery: 1 pcs. on 2025-01-08
Leadtime: On Request **
Total Price:
56.19 € *
Price list
Quantity
Price per unit*
1 pcs.
56.1918 €
5 pcs.
52.8836 €
10 pcs.
49.5754 €
50 pcs.
46.2791 €
100 pcs.
42.9709 €
*incl. VAT plus shipping costs
**Subject to prior sale
Residual-current circuit breakers, type ABB Stotz F 202/204.

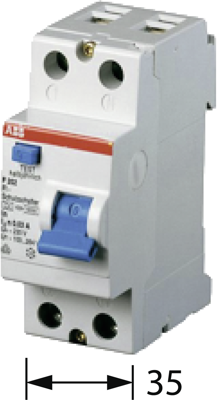

For installation on mounting rails to EN 60715, 35 mm, suitable for AC fault currents and pulsed DC fault currents, compliant with DIN VDE 0664 Part 1; Surge current strength: 250 A (pulse shape 8/20 µs). Short-circuit strength: 10 kA with primary fuse gG 100 A (or automatic circuit-breaker). Operating range of the UT tester: 100 VAC to 240 VAC. Rated voltage: double-pole 240 VAC, four-pole 240/415 VAC. Operating temperatures: –25 to +55 °C. Conductor cross-section: up to 25 mm². Height : 85 mm. Mounting depth: 69 mm.
Double-pole, type F 202.
Technical attributes (type, rated residual current, rated current): F 202 A-25/0.03, 30 mA, 25 A
Technical specifications
| Rated residual current | 30 mA | |
| Rated Voltage | 230 V | |
| Rated current | 25 A | |
| Fault current type | A | |
| Assembly | DIN rail | |
| Pin number | 2 pole | |
| Degree of protection (IP) | IP2X |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85363030 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
