AC 166 GEBU/ 5 SW | Adels-Contact

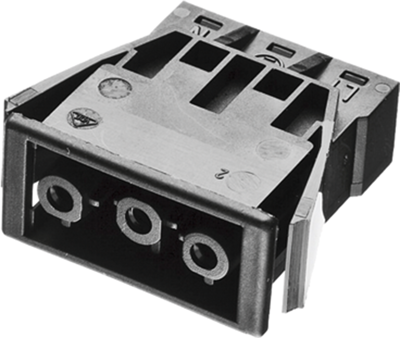

Socket, 5 pole, cable assembly, spring-clamp connection, 0.5-2.5 mm², black, AC 166 GEBU/ 5 SW
Unit Price (€ / pc.)
3.6652 € *
Available: 0 pcs.
Leadtime: On Request **
Connectors series AC 166, type AC 166.
To EN 60320; Rated current: 16 A (CSA 10 A). Rated voltage 3-pole: VDE/Kema Keur/IMQ/Nemko 250 V, Semko 400 V, UL, CSA 600 V. Rated voltage 5-pole: VDE/Kema Keur 400 V, CSA 600 V. Rated cross-section: 1.5/2.5 mm². Stripping length: 8.0 to 9.0 mm. Connection: cage clamp terminals, panel thickness 0.5 to 1.2 mm. Contact: brass. Insulator: polyamide 6.6. Degree of protection: IP 20/IP 40 in mated state. Temperature limit: +110 °C.
Panel sockets.
Type: AC 166 GEBU/5, 5 - pole, A 55, B 18.5, C 38 mm, black
Technical specifications
| Connection | spring-clamp connection | |
| Version | socket | |
| Design | straight | |
| Colour | black | |
| Cable cross-section | 0.5-2.5 mm² | |
| Assembly | cable assembly | |
| Rated voltage IEC | 400 V | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 20 A | |
| Rated current UL/CSA | 16 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | No | |
| Pin number | 5 pole | |
| Fuse holder present | No | |
| Pin temperature | 110 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
