AC 166 GSTLH/ 3 SW | Adels-Contact

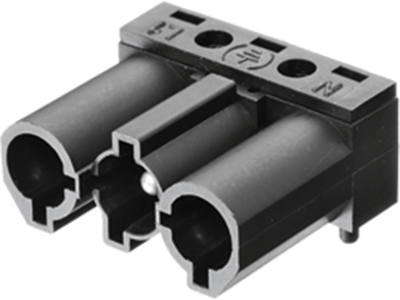

Plug, 3 pole, PCB mounting, solder connection, 2.5 mm², black, AC 166 GSTLH/ 3 SW
Unit Price (€ / pc.)
1.2376 € *
Available: 0 pcs.
Leadtime: On Request **
Plug, AC 166 GSTLH/ 3 SCHWARZ, ADELS-CONT
Plug horizontal, 3 pole, black, coding: 2 (mains), voltage rating: 250 V, current rating: 20.0 A, mounting hole diameter: 1.4 mm.
Features
- With PE function
- With protection against incorrect plugging
- Degree of protection: IP20
- Contact material: Brass
- Flammability rating: V-2
Technical specifications
| Connection | solder connection | |
| Version | plug | |
| Design | straight | |
| Colour | black | |
| Cable cross-section | 2.5 mm² | |
| Assembly | PCB mounting | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 20 A | |
| Rated current UL/CSA | 16 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | No | |
| Pin number | 3 pole | |
| Fuse holder present | No | |
| Pin temperature | 110 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
