AC 166 G VLC/515 SW 100 H5V SW ECA | Adels-Contact

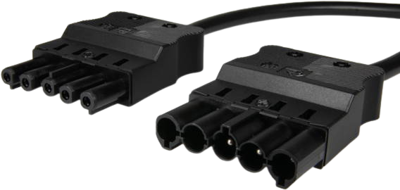

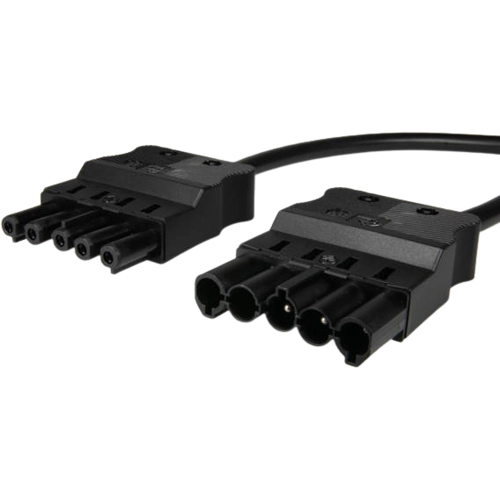

Device connection line, plug, 5 pole, straight on plug, 5 pole, straight, H05VV-F3G1.5 mm², black, 1 m, AC 166 G VLC/515 SW 100 H5V SW ECA
Order No.: 46F8160
EAN: 4028012101795
MPN:
AC 166 G VLC/515 SW 100 H5V SW ECA
16476510
Series: AC 166
Unit Price (€ / pc.)
12.5783 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Flat connecting cables series AC 166, type AC 166.
Cable: H05VV 1.5 mm². Rated current: 16 A. Contact material: brass. Insulator: polyamide 6.6. Degree of protection: IP 20/IP 40 in mated state. Certifications: VDE and Kema Keur. Temperature limit: +110 °C.
With flat 5-pole connectors.
Rated voltage: 400 V.
Technical attributes (type, length, color): AC 166 VLCG/515 100, 1.0 m, black
Technical specifications
| Connection (1) | plug, 5 pole, straight | |
| Connection (2) | plug, 5 pole, straight | |
| Version | power cord | |
| Colour | black | |
| Cable type | H05VV-F3G1.5 mm² | |
| Cable length | 1 m | |
| Cable cross-section | 1.5 mm² | |
| Rated current | 16 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
