503 SI/1 DS | Adels-Contact

Connection terminal, 1 pole, 2.5 mm², clamping points: 1, natural, screw connection, 10 A, 503 SI/1 DS

Order No.: 08H702
EAN: 4099891041137
MPN:
503 SI/1 DS
170301
Series: 503 Si
Adels-Contact

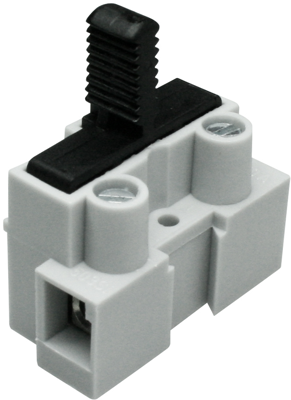

503 SI/1 DS Adels-Contact Terminal Blocks Image 1

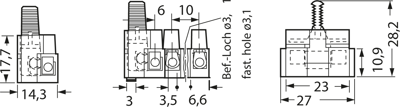

503 SI/1 DS Adels-Contact Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
2.0587 € *
Available: 80 pcs.
Leadtime: On Request **
Total Price:
2.06 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0587 €
10 pcs.
1.8802 €
100 pcs.
1.7255 €
500 pcs.
1.5827 €
1000 pcs.
1.4518 €
*incl. VAT plus shipping costs
**Subject to prior sale

Terminal with 5 x 20 mm fuse holder, type Adels-Contact 503 Si/1DS

1-pole, with wire protection. Terminal with additional 5 x 20 mm holder for microfuses molded onto the side. All contact parts are mounted touch-proof to VBG4, VDE 0106 (Part 100) and VDE 0470 (part 1) The single-pole Version Si/1 can be mounted in-line with multipole terminals which allows expansion of the 2-pole and 3-pole terminals with any number of fuse holders.

Insulator: polyamide 6.6, gray (black grip)

Rated voltage: fuse holder 250 V, terminal 400 V

Rated current: fuse holder 10 A to EN60127-6, terminals to EN 60598/EN 60998 = 16/24 A

Clamping range: without wire protection up to 6.0 mm², with wire protection up to 2.5 mm²

Certifications: VDE, UL

Technical specifications
Connection screw connection
Number of terminals 1
Version connection terminal
AWG cross-section AWG 22-12
Colour natural
Cable cross-section 2.5 mm²
Rated current 10 A
Pin number 1 pole
Logistics
Country of origin TN
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
