503 SI/2 | Adels-Contact
Connection terminal, 2 pole, 0.5-2.5 mm², clamping points: 1, gray, screw connection, 10 A, 503 SI/2
Unit Price (€ / pc.)
2.6180 € *
Available: 1,026 pcs.
Leadtime: On Request **
Total Price:
2.62 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6180 €
10 pcs.
2.3800 €
100 pcs.
2.2015 €
500 pcs.
2.0230 €
1000 pcs.
1.8445 €
*incl. VAT plus shipping costs
**Subject to prior sale

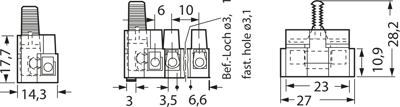

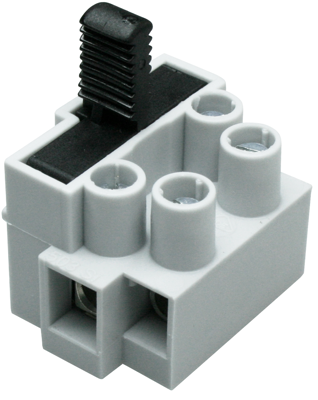

Terminal with 5 x 20 mm fuse holder, type Adels-Contact 503 Si/2
2-pole, without wire protection. Terminal with additional 5 x 20 mm holder for microfuses molded onto the side. All contact parts are mounted touch-proof to VBG4, VDE 0106 (Part 100) and VDE 0470 (part 1) The single-pole Version Si/1 can be mounted in-line with multipole terminals which allows expansion of the 2-pole and 3-pole terminals with any number of fuse holders.
Insulator: polyamide 6.6, gray (black grip)
Rated voltage: fuse holder 250 V, terminal 400 V
Rated current: fuse holder 10 A to EN60127-6, terminals to EN 60598/EN 60998 = 16/24 A
Clamping range: without wire protection up to 6.0 mm²
Certifications: VDE, UL
Technical specifications
| Connection | screw connection | |
| Number of terminals | 1 | |
| Version | connection terminal | |
| AWG cross-section | AWG 22-12 | |
| Colour | gray | |
| Cable cross-section | 0.5-2.5 mm² | |
| Rated current | 10 A | |
| Pin number | 2 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
