503 SI/3 DS | Adels-Contact

Connection terminal, 3 pole, 2.5 mm², clamping points: 1, gray, screw connection, 10 A, 503 SI/3 DS

Order No.: 08H710
EAN: 4099891041168
MPN:
503 SI/3 DS
170303
Series: 503 Si

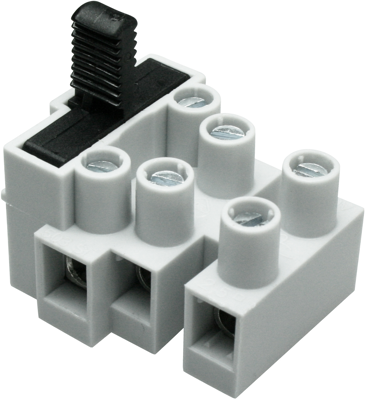

503 SI/3 DS Adels-Contact Terminal Blocks Image 1

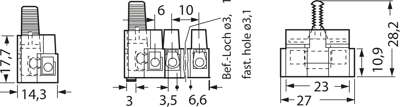

503 SI/3 DS Adels-Contact Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
3.5224 € *
Available: 185 pcs.
Leadtime: 5 Weeks **
Total Price:
3.52 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5224 €
10 pcs.
3.2011 €
100 pcs.
2.9512 €
500 pcs.
2.7132 €
1000 pcs.
2.4752 €
*incl. VAT plus shipping costs
**Subject to prior sale

Terminals with 5 x 20 mm fuse holder, type Adels-Contact 503 Si/3DS

3-pole, with wire protection. Terminal with additional 5 x 20 mm holder for microfuses molded onto the side. All contact parts are mounted touch-proof to VBG4, VDE 0106 (Part 100) and VDE 0470 (part 1) The single-pole Version Si/1 can be mounted in-line with multipole terminals which allows expansion of the 2-pole and 3-pole terminals with any number of fuse holders.

Insulator: polyamide 6.6, gray (black grip)

Rated voltage: fuse holder 250 V, terminal 400 V

Rated current: fuse holder 10 A to EN60127-6, terminals to EN 60598/EN 60998 = 16/24 A

Clamping range: with wire protection up to 2.5 mm²

Certifications: VDE, UL

Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 1
Ausführung Anschlussklemme
AWG-Leiterquerschnitt AWG 22-12
Farbe grau
Leiterquerschnitt 2,5 mm²
Nennstrom 10 A
Polzahl 3-polig
Logistics
Ursprungsland TN
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
