10EA | Aero-Motive
Balancer, 10EA, load capacity (min/max) 2.3 to 5 kg, stroke 1.8 m, without locking, 1301720020
Unit Price (€ / pc.)
1,256.5805 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
1,256.58 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,256.5805 €
Balancer, 1301720020, Aero-Motive

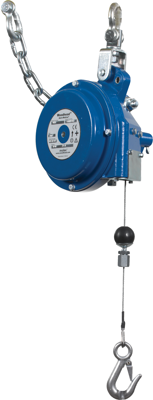

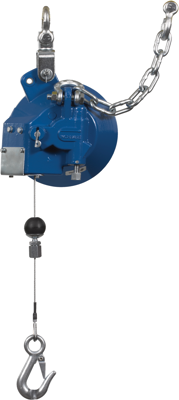

Aero-Motive Heavy Industrial Duty EA Balancer with Heavy Cast Aluminum Housing and Cover, Weight Range 2.3-5.0 kg (5.0-11.0 lb),1.80 m (6.0') Travel
EA Serie balancers are devices designed to provide constant cable tension throughout a specified length of cable travel. A true balance condition is achieved through precise power-spring tension control and a unique cable drum design which matches the torque buildup from the power spring.
Tools attached to Aero-Motive Balancers become almost weightless in the hands of operators, allowing maximum freedom to work more efficiently and reduce fatigue throughout work shifts, leading to increased productivity
Applications
- Portable tools
- Manufacturing
- Assembly facilities
- Workstations
- Electric Tools
Technical specifications
| Locking | without locking | |
| Version | balancer | |
| Shell Material | aluminum | |
| Weight | 8.6 kg | |
| Stroke | 1.8 m | |
| Rope Diameter | 3.18 mm | |
| Fall protection | Yes | |
| Spring fracture safety device | Yes | |
| Manual locking | Yes | |
| Rope pullout | 1.8 m | |
| Max Load capacity | 5 kg | |
| Min Load capacity | 2.3 kg | |
| Suspension Rope | galvanized |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84253900 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
