10FLS | Aero-Motive

Retractor, 10FLS, load capacity (min/max) 1.8 to 4.5 kg, stroke 2.4 m, without locking, 1301750062

Order No.: 23P6957
EAN: 4099891452308
MPN:
10FLS
1301750062
Series: F
Aero-Motive

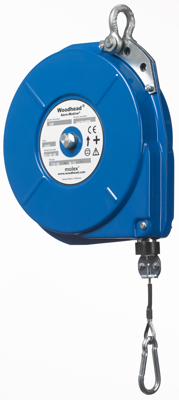

10FLS Aero-Motive Spring Balancers Image 1

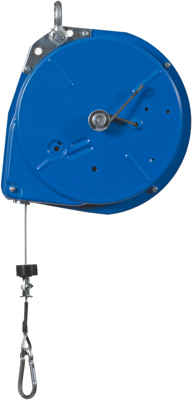

10FLS Aero-Motive Spring Balancers Image 2
Image may differ
Unit Price (€ / pc.)
259.3605 € *
Available: 0 pcs.
Leadtime: 57 Weeks **
Total Price:
259.36 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
259.3605 €

Retractor, 1301750062, Aero-Motive

Retractor 10FLS Aero-Motive, Weight Range 4-10 lb/1.8-4.5 kg, Cable Travel 8 ft/2.4 m

Aero-Motive 10/22FLS and 10/22FLSR retractors offer the exact same performance as 10/22F and 10/22FLR, but are equipped with Automatic Safety Lock. These retractors meet DIN15112 standards, which require arresting a load in place should the unit lose tension or in the event of a power spring failure.

Features

  • Automatic Safety Lock: Yes
  • Manual Safety Lock: No
  • Upper Mount: Fixed - Shackle & Cotter Pin
  • External Tension Adjustment: Shaft and Spring Friction Clutch
  • Ratchet Lock (ON/OFF): Model FLSR
  • Secondary Support: Safety Cable (Optional)
  • Serviceable: Yes with Aero-Motive Repair Parts or Kits
  • Sheet-Metal Housing to Protect Spring and Drum
  • Rubber Shock Absorber
  • Adjustable Cable Stop
  • Snap Hook for Easy Tool Attachment or Removal
Technical specifications
Arretierung ohne Arretierung
Ausführung Federzug
Gehäusematerial Blechgehäuse
Gewicht 4.5 kg
Hub 2.4 m
Absturzsicherung No
Federbruchsicherung Yes
Manuelle Arretierung No
Seilauszug 2.4 m
Tragfaehigkeit Max 4.5 kg
Tragfaehigkeit Min 1.8 kg
Tragseil Verzinkt
Logistics
Ursprungsland DE
Compliance
RoHS konform not_relevant
SVHC frei not_specified
