125KA | Aero-Motive
Balancer, 125KA, load capacity (min/max) 52 to 57 kg, stroke 2.1 m, without locking, 1301720785
Unit Price (€ / pc.)
2,031.6751 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2,031.68 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2,031.6751 €
Balancer, 1301720785, Aero-Motive

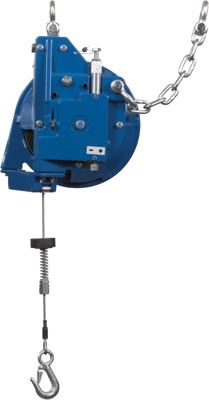

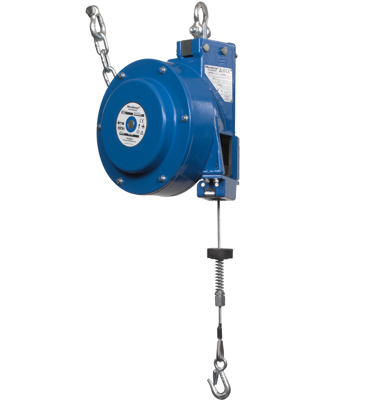

Balancer 125KA Aero-Motive, Weight Range 115-125 lb/52-57 kg, Cable Travel 7 ft/2.1 m
KA balancers, equipped with two power springs, are the workhorses for the heavy industrial tools weighing up to 240 lb [110 kg]. Automatic Safety Lock system is a Power Based System which triggers on power loss from any of the two power springs. The Safety Lock system can be easily adjusted and fully tested by qualified personnel to meet desired Safety Lock expectations.
Features
- Automatic Safety Lock: Yes - Power-Based Design
- Manual Safety Lock: Yes
- Upper Mount: 360° Swivel
- External Tension Adjustment: Worm Gear Vertical
- WearGuard™ Epoxy: Extends Cable and Drum Life
- Declutching Spring Hub: Prevents Power Spring Damage
- Secondary Support: Factory Equipped with Safety Chain
- Serviceable: Yes with Aero-Motive Repair Parts or Kits
- High-Pressure Extra-Thick Cast Aluminum Housings
- Rubber Shock Absorber
- Adjustable Cable Stop
- Industrial-Grade Eye Hook with Spring-Loaded Latch
Technical specifications
| Locking | without locking | |
| Version | balancer | |
| Shell Material | aluminum | |
| Weight | 28 kg | |
| Stroke | 2.1 m | |
| Fall protection | Yes | |
| Spring fracture safety device | Yes | |
| Manual locking | Yes | |
| Rope pullout | 2.1 m | |
| Max Load capacity | 57 kg | |
| Min Load capacity | 52 kg | |
| Suspension Rope | galvanized |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84253900 |
Compliance
| RoHS conform | not_relevant |
| SVHC free | not_specified |
