1515TLR | Aero-Motive
Torque drum, 1515TLR, load capacity (max) 6.8 kg, without locking, 1301760007
Unit Price (€ / pc.)
412.7396 € *
Available: 0 pcs.
Leadtime: On Request **

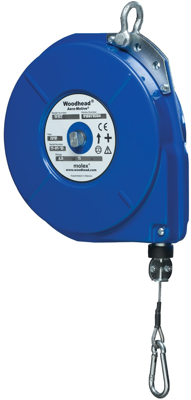

Torque Reel, 1301760007, Aero-Motive
Aero-Motive Torque Reel with Rigid Mount, Weight Range 0.0-6.8 kg (0.0-15.0 lb), 4.58 m (15.0') Travel
T Models offer hanging type installation and share the same design features and envelope size as FLR Series Retractors. TR Models offer rigid mount type for both horizontal or vertical mounting positions, based on application and installation needs.
Technical specifications
| Locking | without locking | |
| Version | torque drum | |
| Shell Material | sheet metal enclosure | |
| Weight | 4.1 kg | |
| Fall protection | No | |
| Spring fracture safety device | No | |
| Manual locking | No | |
| Rope pullout | 4.6 m | |
| Max Load capacity | 6.8 kg | |
| Suspension Rope | galvanized |
Download
Logistics
| Country of origin | DE |
Compliance
| RoHS conform | not_relevant |
| SVHC free | Yes |
