160KA | Aero-Motive
Balancer, 160KA, load capacity (min/max) 70 to 75 kg, stroke 2.1 m, without locking, 1301720073
Unit Price (€ / pc.)
2,031.6751 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2,031.68 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2,031.6751 €

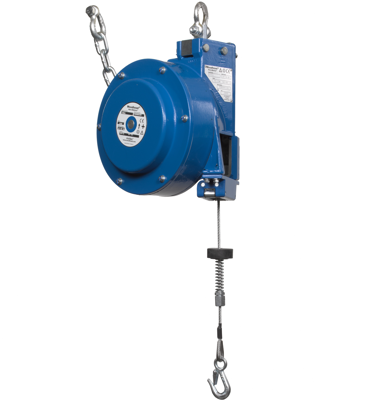

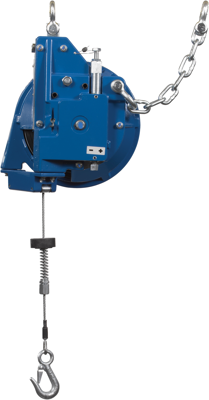

Balancer, 1301720073, Aero-Motive
Aero-Motive Heavy Industrial Duty KA Balancer, Weight Range 70.0-75.0 kg (155.0-165.0 lb), 2.13 m (7.0') Travel
KA balancers, equipped with two power springs, are the workhorses for the heavy industrial tools weighing up to 240 lb [110 kg]. Automatic Safety Lock system is a Power Based System which triggers on power loss from any of the two power springs. The Safety Lock system can be easily adjusted and fully tested by qualified personnel to meet desired Safety Lock expectations.
Technical specifications
| Arretierung | ohne Arretierung | |
| Ausführung | Balancer | |
| Gehäusematerial | Aluminium | |
| Gewicht | 28 kg | |
| Hub | 2.1 m | |
| Seil-Durchmesser | 4.76 mm | |
| Absturzsicherung | Yes | |
| Federbruchsicherung | Yes | |
| Manuelle Arretierung | Yes | |
| Seilauszug | 2.1 m | |
| Tragfaehigkeit Max | 75 kg | |
| Tragfaehigkeit Min | 70 kg | |
| Tragseil | Verzinkt |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 84253900 |
Compliance
| RoHS konform | not_relevant |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
