220KA | Aero-Motive
Balancer, 220KA, load capacity (min/max) 90 to 100 kg, stroke 1.8 m, without locking, 1301720116
Unit Price (€ / pc.)
2,031.6751 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2,031.68 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2,031.6751 €
Balancer, 1301720116, Aero-Motive

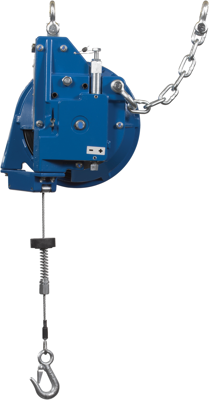

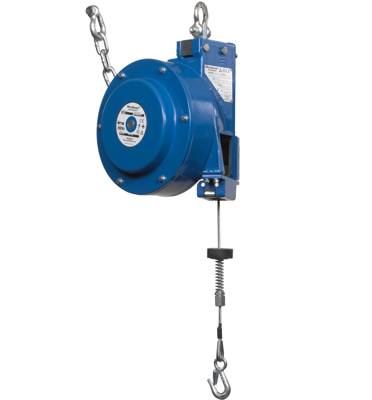

Aero-Motive Heavy Industrial Duty KA Balancer with Upper / Lower Bullard Hooks and Upper Shackle Assembly, Weight Range 91.0-100.0 kg (200.0-221.0 lb), 1.80 m (6.0') Travel
KA balancers, equipped with two power springs, are the workhorses for the heavy industrial tools weighing up to 240 lb [110 kg]. Automatic Safety Lock system is a Power Based System which triggers on power loss from any of the two power springs. The Safety Lock system can be easily adjusted and fully tested by qualified personnel to meet desired Safety Lock expectations.
Technical specifications
| Locking | without locking | |
| Version | balancer | |
| Shell Material | aluminum | |
| Weight | 28 kg | |
| Stroke | 1.8 m | |
| Rope Diameter | 4.76 mm | |
| Fall protection | Yes | |
| Spring fracture safety device | Yes | |
| Manual locking | Yes | |
| Rope pullout | 2.1 m | |
| Max Load capacity | 100 kg | |
| Min Load capacity | 90 kg | |
| Suspension Rope | galvanized |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84253900 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
