22FLR-4.2M | Aero-Motive

Retractor, 22FLR-4.2M, load capacity (min/max) 3.6 to 10 kg, with locking, 1301750041

Order No.: 23P6956
EAN: 4099891452292
MPN:
22FLR-4.2M
1301750041
Series: F

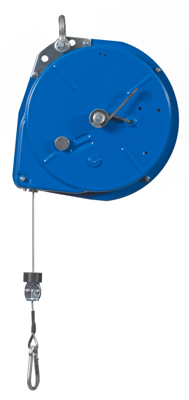

22FLR-4.2M Aero-Motive Spring Balancers Image 1

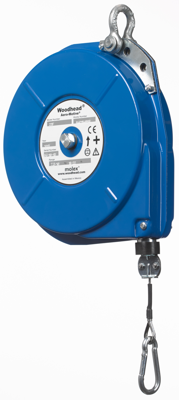

22FLR-4.2M Aero-Motive Spring Balancers Image 2
Image may differ
Unit Price (€ / pc.)
277.8888 € *
Available: 0 pcs.
Leadtime: 28 Weeks **
Total Price:
277.89 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
277.8888 €

Retractor, 1301750041, Aero-Motive

Aero-Motive Standard Industrial Duty Retractor with Ratchet Lock, Weight Range 3.6-10.0 kg (8.0-22.0 lb), 2.40 m (8.0') Travel

Retractors are designed to retract a tool or load when no force is applied on it. Constant downward force has to be applied in order to keep the suspended tool/load in position. The torque output of the rewind spring increases as the cable is pulled out of the unit, retracting the suspended tool/load to the uppermost adjusted position when released.

Field proven Aero-Motive® retractors feature power springs for excellent life cycles and ergonomics in virtually any industrial work space

Features

  • New and improved power springs
  • Provides excellent ergonomics and life cycles
  • Durable stranded-steel aircraft cable features adjustable cable stop
  • Increased durability Allows tools to be set at different positions/ heights
Technical specifications
Arretierung mit Arretierung
Ausführung Federzug
Gehäusematerial Blechgehäuse
Gewicht 4.5 kg
Absturzsicherung No
Federbruchsicherung No
Manuelle Arretierung No
Seilauszug 4.2 m
Tragfaehigkeit Max 10 kg
Tragfaehigkeit Min 3.6 kg
Tragseil Verzinkt
Logistics
Ursprungsland DE
Zolltarifnummer 84289090
